Layered Architecture — Part 2

Closed layers, the sinkhole, and the quiet trick that makes the whole thing testable.

“An architecture is the set of decisions you wish you could change later — so make the boring ones cheap to reverse.”

🧭 Previously, on “Simplicity That Still Works”

In Part 1 we made the case that Layered Architecture is the grandparent pattern — the one you’ve already used whether you meant to or not. We walked the stack, praised its clarity, and listed its trade-offs (leaky boundaries, boilerplate, over-abstraction).

Part 1 was the napkin sketch. Part 2 is the part where we turn the napkin over and write down the three things every serious treatment of the pattern includes — and that the napkin always leaves out:

  1. Open vs. closed layers — the rule that actually makes layering worth something.
  2. The Architecture Sinkhole — the anti-pattern that quietly turns your layers into expensive postage.
  3. The honest flaw — classic layering points its dependencies the wrong way, and ports fix it.

We also rebuilt the diagram. Here it is.

🖼️ The Rebuilt Diagram

Annotated Layered Architecture

A few deliberate changes from Part 1’s picture:

  • Four layers, not five. The canonical layered pattern is four sequential layers (Mark Richards’ Software Architecture Patterns names them Presentation, Business, Persistence, Database). What Part 1 drew as a fifth “Shared” band was never really a layer — so…
  • Shared and Cross-Cutting are now perpendicular rails. They run across the stack on the left, because every layer uses them and they depend on no layer. A layer is a step in the request’s journey; a rail is a shelf every step reaches for. Different things; different geometry.
  • The right side finally earns its space. Part 1’s right panel was a legend that re-printed each layer’s name. The new one is a per-layer field card: the classes you’d actually find there, what the layer is for, and — just as important — what it must never contain.
  • The arrows mean something. Downward arrows are the one-way dependency rule. The single orange arrow pointing up into the UserRepository port is the whole back half of this article: a dependency that’s been deliberately inverted.

🔒 Open vs. Closed Layers

Here’s the rule Part 1 hand-waved past, and it’s the one that makes layering more than decorative.

A layer is closed when a request must pass through it to reach the layer below. Presentation can’t reach into the Domain without going through the Service layer; the Service can’t skip to the database without going through Infrastructure. Closed layers create what Richards calls layers of isolation: a change inside one layer can’t ripple outward, because nothing is allowed to reach past its neighbor to touch it.

That isolation is the entire payoff. It’s why you can swap PostgreSQL for MongoDB and only the Infrastructure layer notices. Break the closure — let a controller call the repository “just this once” — and you’ve spent the isolation you were paying for. The layers are still drawn on the diagram; they just don’t do anything anymore.

A layer is open when callers are allowed to bypass it. That sounds like cheating, but it’s a legitimate, deliberate tool — our Shared / Common rail is open on purpose. A value type like Money or a shared Contract is meant to be reached directly by anyone. Forcing every access to Money to tunnel through an intermediate layer would be ceremony with no benefit.

The discipline is this:

Closed by default. Open only where you can say out loud why bypassing is safe.

An open layer you chose is architecture. An open layer that happened is a leak.

🚰 The Architecture Sinkhole

Now the failure mode that closed layers invite if you’re not watching.

A sinkhole is a request that falls straight through every layer doing nothing on the way down:

POST /users/{id}/email
  → UserController.get_email(id)      # just calls the service
    → UserService.get_email(id)       # just calls the repository
      → UserRepository.get_email(id)  # just runs the query

Three layers, three method calls, zero decisions. Each layer is a pass-through — a tube. You’ve paid for four objects, three hops, and a fistful of DTO mapping to do what a single function could. Do this everywhere and your “layered architecture” is really an elaborate, well-indented way to forward a database call to the browser.

Richards gives a usable heuristic — the 80/20 rule:

  • If roughly 20% of your requests are simple pass-throughs and 80% do real work in each layer, that’s healthy. Pure CRUD endpoints should be cheap.
  • If the ratio inverts — 80% of requests are tubes — the layering is overhead, not structure. That’s the sinkhole, and the fix isn’t “add another layer.” It’s to open the layers that aren’t earning their place, and let the cheap reads go straight to the data.

The point of measuring is to stop treating “we have layers” as a virtue in itself. Layers are a cost you pay for isolation. If a request doesn’t need the isolation, don’t make it pay.

🧭 The Honest Flaw: Which Way Do Dependencies Point?

Here’s the thing the napkin never admits.

Trace the arrows on a classic closed stack. Presentation depends on Service. Service depends on the Domain. And the Domain… depends on Infrastructure, because that’s where persistence lives and the business logic needs to load and save things. The dependency chain runs top → bottom, which means your most valuable, most stable, most framework-free code — the Domain — ends up depending on your most volatile, most replaceable code: the database client, the queue SDK, the HTTP libraries.

That’s backwards, and you feel it the first time you try to unit-test a domain rule and discover you need a live Postgres connection to do it. The thing that should be the easiest to test in isolation is welded to the thing that’s hardest to stand up.

This single observation is the seed of every “better” pattern that followed Layered — Hexagonal, Onion, Clean, and the Layered Ports Architecture we’ll get to. They all do the same core move:

Don’t make the Domain depend on Infrastructure. Make Infrastructure depend on the Domain’s terms.

That move has a name: the Dependency Inversion Principle. And you don’t need a new architecture to start using it — you need a port.

🔌 Ports & Adapters: Inverting the Dependency

A port is an interface that the inner layer owns and defines in its own vocabulary. An adapter is an outer-layer class that implements that interface. The inner layer depends on the port; the adapter depends on the port; nobody depends on the concrete database class. The arrow that used to point down into Infrastructure now points up into the port.

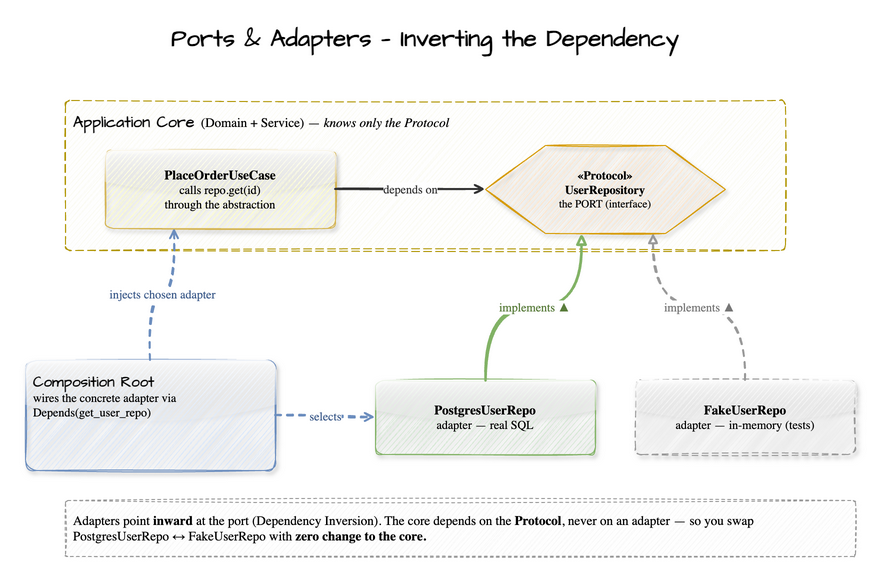

Ports and Adapters — inverting the dependency

In Python, the cleanest way to express a port is a typing.Protocol — structural typing, so an adapter satisfies the port just by having the right shape. No base class, no inheritance, no import from Infrastructure back into the core.

The port (defined in the core)

from typing import Protocol

class UserRepository(Protocol):
  """Port: the core's own vocabulary for loading users."""
  def get(self, user_id: str) -> User | None: ...

The use case (knows only the port)

class PlaceOrderUseCase:
  """Service-layer use case; depends on the abstraction, not the database."""

  def __init__(self, users: UserRepository) -> None:
    self._users = users

  def run(self, user_id: str, order: Order) -> Receipt:
    user: User | None = self._users.get(user_id)
    receipt: Receipt = Receipt.declined(user_id)
    if user is not None and order.is_valid_for(user):
      receipt = order.place_for(user)
    return receipt

Notice what PlaceOrderUseCase doesn’t import: no psycopg, no SQL, no framework. It is pure, and it is trivially unit-testable.

The adapter (lives in Infrastructure)

class PostgresUserRepo:
  """Adapter: structurally satisfies UserRepository — no inheritance needed."""

  def __init__(self, pool: Pool) -> None:
    self._pool = pool

  def get(self, user_id: str) -> User | None:
    row: Row | None = self._pool.fetch_one(
      "SELECT id, name FROM users WHERE id = %s", user_id
    )
    return User.from_row(row) if row is not None else None

Wiring it up at the composition root (FastAPI)

The one place that’s allowed to know both the port and the concrete adapter is the composition root — the edge of the app where everything gets assembled. With FastAPI, Depends is your dependency-injection container; no extra framework required.

from fastapi import Depends, FastAPI

app: FastAPI = FastAPI()

def get_user_repo() -> UserRepository:
  """Composition root: choose the concrete adapter here, and only here."""
  return PostgresUserRepo(pool)

def get_place_order(
  users: UserRepository = Depends(get_user_repo),
) -> PlaceOrderUseCase:
  return PlaceOrderUseCase(users)

@app.post("/orders")
def place_order(
  cmd: PlaceOrderCommand,
  use_case: PlaceOrderUseCase = Depends(get_place_order),
) -> ReceiptDTO:
  receipt: Receipt = use_case.run(cmd.user_id, cmd.to_order())
  return ReceiptDTO.from_domain(receipt)

The concrete PostgresUserRepo appears exactly once, in get_user_repo. Everywhere else — the controller, the use case, the domain — speaks only UserRepository. The implementation is hidden behind the port.

The payoff: swap the adapter, change nothing

Because the core depends on the port and never on the database, a test supplies a different adapter and the core can’t tell the difference:

class FakeUserRepo:
  """Also satisfies UserRepository — in-memory, zero infrastructure."""

  def __init__(self, users: dict[str, User]) -> None:
    self._users = users

  def get(self, user_id: str) -> User | None:
    return self._users.get(user_id)

def test_places_order_for_known_user() -> None:
  repo: FakeUserRepo = FakeUserRepo({"u-1dea": User(id="u-1dea", name="Ada")})
  use_case: PlaceOrderUseCase = PlaceOrderUseCase(repo)
  receipt: Receipt = use_case.run("u-1dea", a_small_order())
  assert receipt.is_placed

No database, no fixtures, no docker compose up just to assert a business rule. And in an integration test you can flip the whole app over to a fake with one line at the composition root:

app.dependency_overrides[get_user_repo] = lambda: FakeUserRepo({...})

That’s the entire trick. Same layers, same diagram, one inverted arrow — and the Domain is finally free.

🧭 Where This Leads: Toward LPA

If a single port between the Service and Infrastructure layers buys you this much, the obvious question is: why stop at one boundary?

That’s exactly the question the Layered Ports Architecture (LPA) answers. LPA keeps the familiar four-layer stack — nobody has to relearn the mental model — but puts a formal port at every boundary, so each adjacent pair talks only through a contract implemented by an adapter in the layer beneath. You get the teachability of Layered with the decoupling of Hexagonal, and teams can build adjacent layers in parallel without stepping on each other.

We’ll give LPA the full treatment — including the Port Generalization Rule — in its own article. Part 2’s job was just to show you the move that makes it work, on the smallest possible example.

🗝️ Key Takeaways

  • Closed layers buy isolation; open layers spend it deliberately. Default to closed; open only where you can name the reason.
  • Watch the 80/20 ratio. If most requests are pass-throughs, you have a sinkhole — open the layers that aren’t earning their keep instead of adding more.
  • Classic layering points its dependencies the wrong way — the Domain ends up shackled to Infrastructure. That’s the real reason it gets hard to test.
  • A port inverts that arrow. Define the interface in the core (a typing.Protocol), implement it in Infrastructure, and wire the concrete adapter once at the composition root via dependency injection.
  • You don’t need a new architecture to get most of the benefit — you need one well-placed port. LPA is just that idea, applied everywhere.

Layered Architecture isn’t wrong. It’s just unfinished — and a port is the smallest possible finishing move.

“Simplicity is the soul of efficiency.” — Austin Freeman
